How Do Self Balancing Scooters Work?

A lot of you have been asking us this question, so here we are with an in-depth explanation.

How Does a Hoverboard Work?

Let’s take a look at what’s under the hood of a hoverboard.

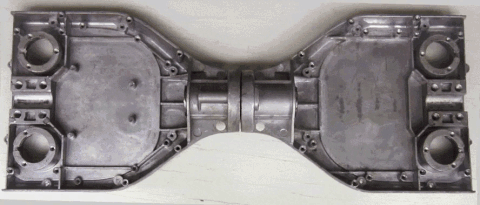

A hoverboard features the following main components:

• A steel frame with a central pivot
• A logic board
• Two gyroscopes
• Two infrared sensors
• Two electric motors (located inside the wheels)
• Two tilt/speed sensors (located inside the wheels)
• Charging port
• Power switch
• A battery pack
• LED lights
• Pressure pads
• A plastic shell

Let’s take a look at how the components work.

How does a Self Balancing Board move?

The Wheel Sensor

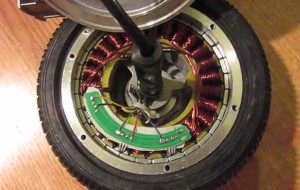

The wheels of the hoverboard house the electric motors themselves. They also contain a tilt and speed sensor. This detects the rpm (revolutions per minute) of the individual wheel, and sends it to the gyroscope and speed control boards, located inside the main body, right next to the wheels.

Gyroscope / Speed Control Boards

The gyroscope and speed control boards receive the rpms and tilt information from the sensor inside the wheels, and they, in turn, send it to the main logic board.

When you calibrate your board, the gyroscopes are basically “zeroed”, as in, you’re telling the gyroscopes, “this is flat, hence this is when the hoverboard’s tilt is at 0”. To find out how to calibrate your board with your scooter’s remote, read our guide.

Note: this guide refers to the most common type of hoverboards, the 6.5 inch ones. Some other types, such as the Lamborghini hoverboard are a little different, although the principles shown here still apply.

The Main Logic Board

The logic board is the “brain” of your hoverboard, and it’s where the processor computes in real time the status of the board, the speed at which you’re travelling, and the relative speed and tilt of the individual wheels (because, for example, when you turn the two wheels have opposing tilts, and hence opposing rpms and motion). [note: not all hoverboards use blue TaoTao logic boards, check out our article about the Best Hoverboards here]

It also controls the power management of the board, and wether you are in “beginner mode” (thereby limiting the max speed of the board) or if the scooter is “locked”.

The Battery Pack

The battery pack is what keeps your board going. There are different packs out there, but the vast majority of them are 36V 4400mAH battery packs. Sometimes manufacturers are able to craft a hoverboard cheap by using smaller capacity batteries. (Make sure to check out our hoverboard price guide)

How does a Hoverboard detect your movement?

This is possibly the most clever part of the board: the pressure pads sit on two switches each.

When you lean forward, the front switch is pushed down, and a little plastic “wall” slides in-between an infrared LED and an infrared sensor.

As long as the sensor detects the light, the logic board will “tell” the motors to be still. But when the light is interrupted (because of the switch being pushed down by your weight), the board tells the motor to spin in a particular direction.

So, for example, if you’re turning left, your foot activates the front right switch, making the right wheel spin forward, while your left foot activates the back left switch, making the left wheel spin backwards. It’s very clever.

So how does a Self Balancing Scooter.. Balance?

The tilt sensors in the wheels tell the gyroscopes how far forward you’re leaning. The gyroscopes relay this information to the logic board.

The more you’re leaning forward, the faster the logic board tells the motors to spin, to sort of “catch up” with your center of gravity. It’s this simple (yet very clever) mechanism which allows you to control the cruising speed of the scooter with your weight.

Now that you know how they work, why don’t you head over to our Best Hoverboard guide for the best self balancing scooters on the market right now?
